COOLING TOWER FILLER

for Crossflow and Counterflow applications

COOLING TOWER FILLS

The single most important component of a cooling tower is the filler. The ability to create both the maximum contact surface and the maximum contact time between air and water determines the efficiency of the vacuum tower. And it must create exposure to air and water while setting as few restrictions as possible on airflow.

Splash type fill It uses the principle of dispersion and dispersion for the fill, so the more dispersion it is. The more the efficiency of the vacuum tower is even better.

Film type fill uses the principle of pouring heat through the fill panel vertically by the contact surface between There will be a lot of water and air. This makes it possible to exchange heat better. But there will be a problem of use for poor quality water or dirty water. because it is easier to clog

Therefore, each type of fill should be selected to suit the water quality and needs.

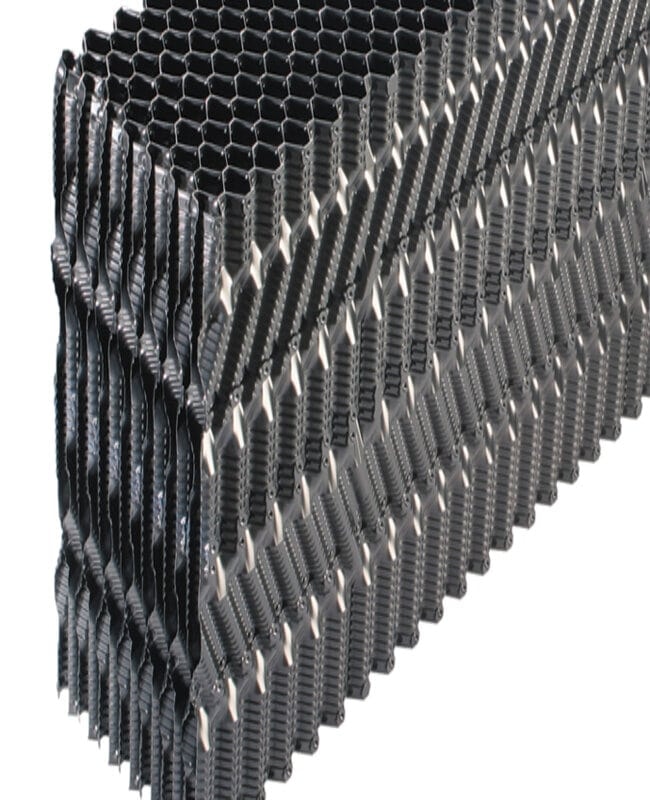

CROSS FLUTED FILM FILL
C10 FILLS

Cross-Fluted Film Fills for Counterflow Application

  • Use with Counterflow Cooling Towers.
  • fill with high efficiency
  • Fill Pitch- 12mm, 19mm, 25mm.
  • Maximum continuous operating temperature 60 ° C.
LOW-FOULING FILLSLow-fouling Film Fills

  • Use with Counterflow Cooling Towers.
  • High efficiency, reduce clogging
  • Fill Pitch- 12mm, 19mm, 25mm.
  • Maximum continuous operating temperature 60 ° C.
  • Use as a replacement for normal fills to reduce clogging problems.

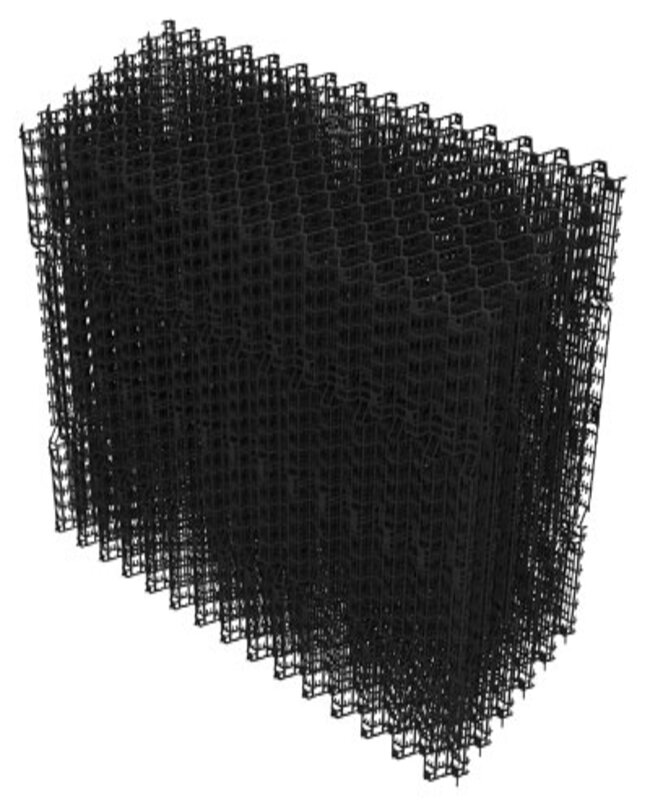

TRICKLE FILLSLow-fouling Trickle Fill

  • Used with Counterflow and Crossflow Applications.
  • High-efficiency Hybrid Type.
  • Fill Pitch- 12mm, 19mm, 25mm.
  • Maximum continuous operating temperature 80 ° C
  • Used for demanding high temperature and reducing blockages.
CROSSFLOW FILM FILLSCross-Fluted Film Fills for Crossflow Application
  • Use with Crossflow Cooling Towers.
  • high efficiency
  • Fill Pitch- 12mm & 19mm.
  • Maximum continuous operating temperature 60°C
