Capacity - 60 M3 / h to 3500 M3 / h.

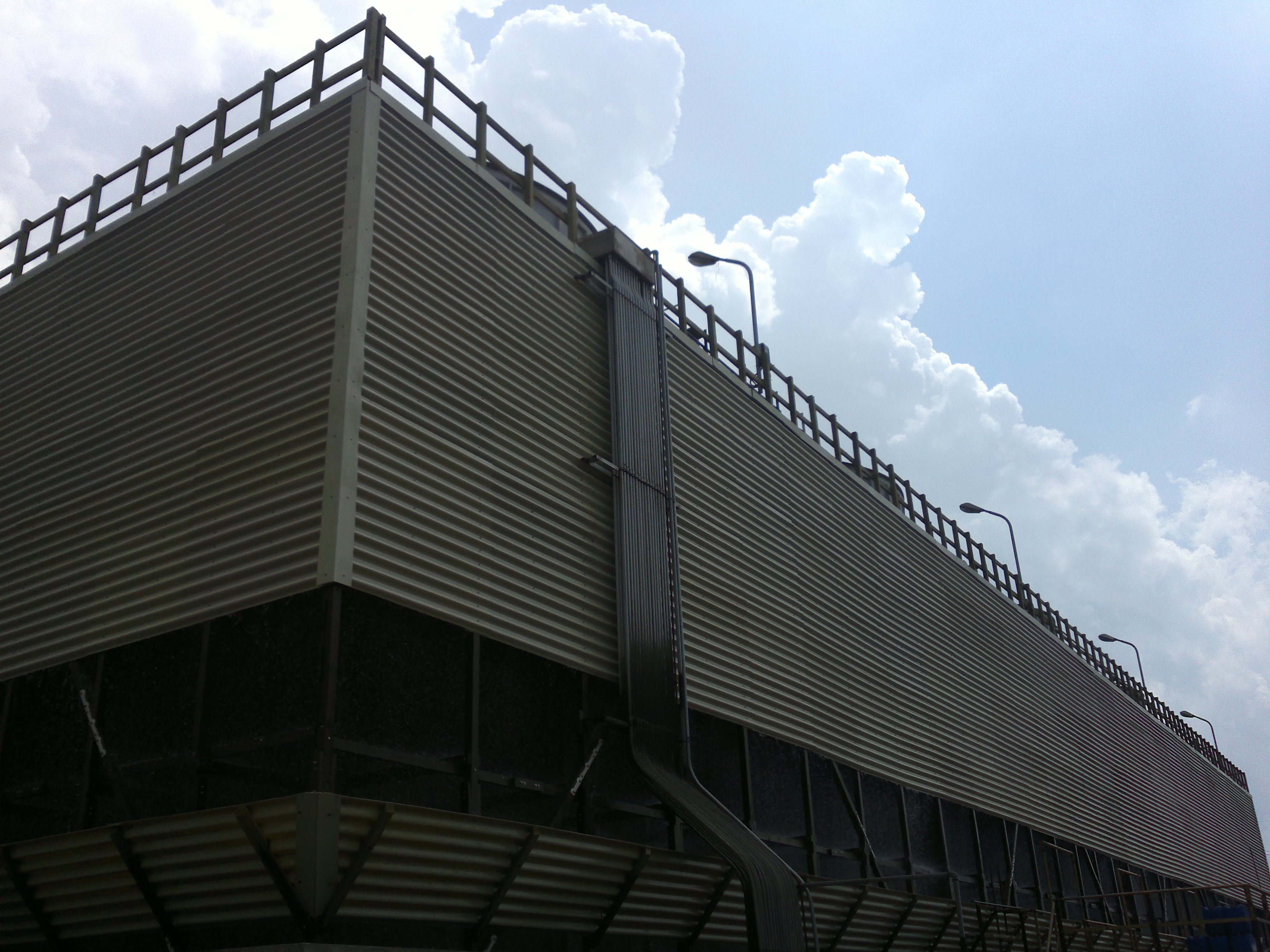

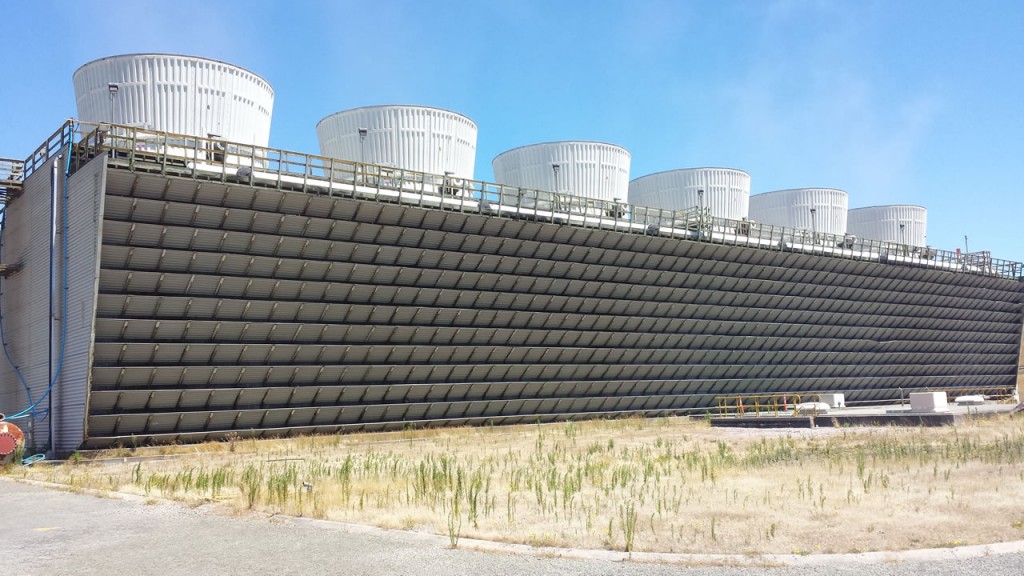

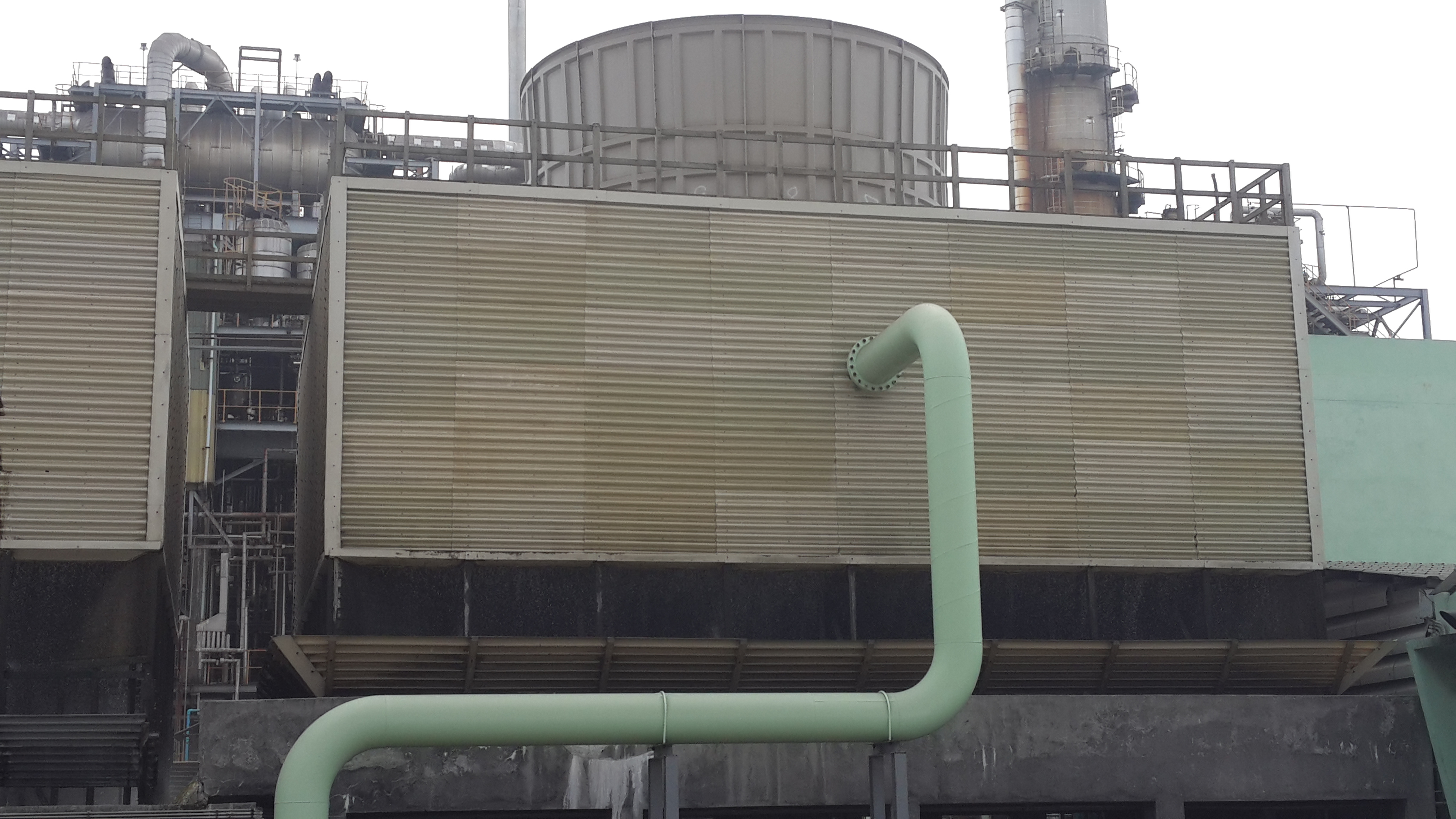

SCT offers an industrial-grade site built crossflow cooling tower and Counterflow design that ensures years of robust and trouble-free operation. The splash-filling design is ideal for applications with poor water quality and is commonly used in cross-flow cooling buildings. High-efficiency film refills are typically provided in Counterflow cooling towers where water quality Favorable.

 For each base cell size, designers can choose from a large set of possible components. Many of these things can result in an economical choice that can meet thermal performance requirements. But only one will meet fan horsepower (kW), pump head, planned area, and other evaluation parameters that may be determined by the owner's specifications.

Design flexibility

 Available in various cell sizes, aerated and heightened. Within these cell plans, each aspect of the basic design can be changed to achieve operational savings. Options include a variety of filling types and densities, fan type and size, cylinder height and shape, fan type. Eliminate flotation and density and water distribution methods. The adjustable pitch fan and efficient gear reducer drive ensure the maximum use of the fan power.

property

The fan design is optimized for determining the static pressure and airflow requirements of the tower.

Mutual filler and fan blending for maximum cooling performance in system configurations.

Gear reducer provides consistently optimized fan speed and works reliably in saturated air / vapor mixtures that are corrosive.

The driveshaft is designed to absorb operational shocks, thereby increasing the service life of these critical components.
